• Aim lights from the ground
  • Heavy gauge all-steel body
  • Tallest of all compact light towers
  • Largest fuel tank and longest run time in its class

Transport and Storage

  • Compact design takes up less space when shipped or stored
  • Fold-up tow bar reduces footprint when stored
  • Balanced design and short height ensure the best towing experience of any light tower
  • Two units can be tandem towed (when allowed — towing regulations vary by region)


  • Compact design is easy to maneuver and deploy
  • Balanced design makes it easy to move the trailer by hand with just one person
  • Three outriggers and four leveling jacks provide stability when deployed
  • Lights can be safely adjusted from the ground, with no need to climb on equipment
  • Lights are aimed independently and hold their position without tools
  • Single winch raises and lowers the tower smoothly and easily
  • Dual-pulley system lifts each tower section from below, reducing the cable load by 50% and balancing the load for smooth transition up and down
  • Tower rotates nearly 360 degrees, reducing the need to frequently move the trailer
  • Tower is the tallest available on a compact light tower
  • Lights operate at any height
  • LED lights are the brightest available on a compact light tower

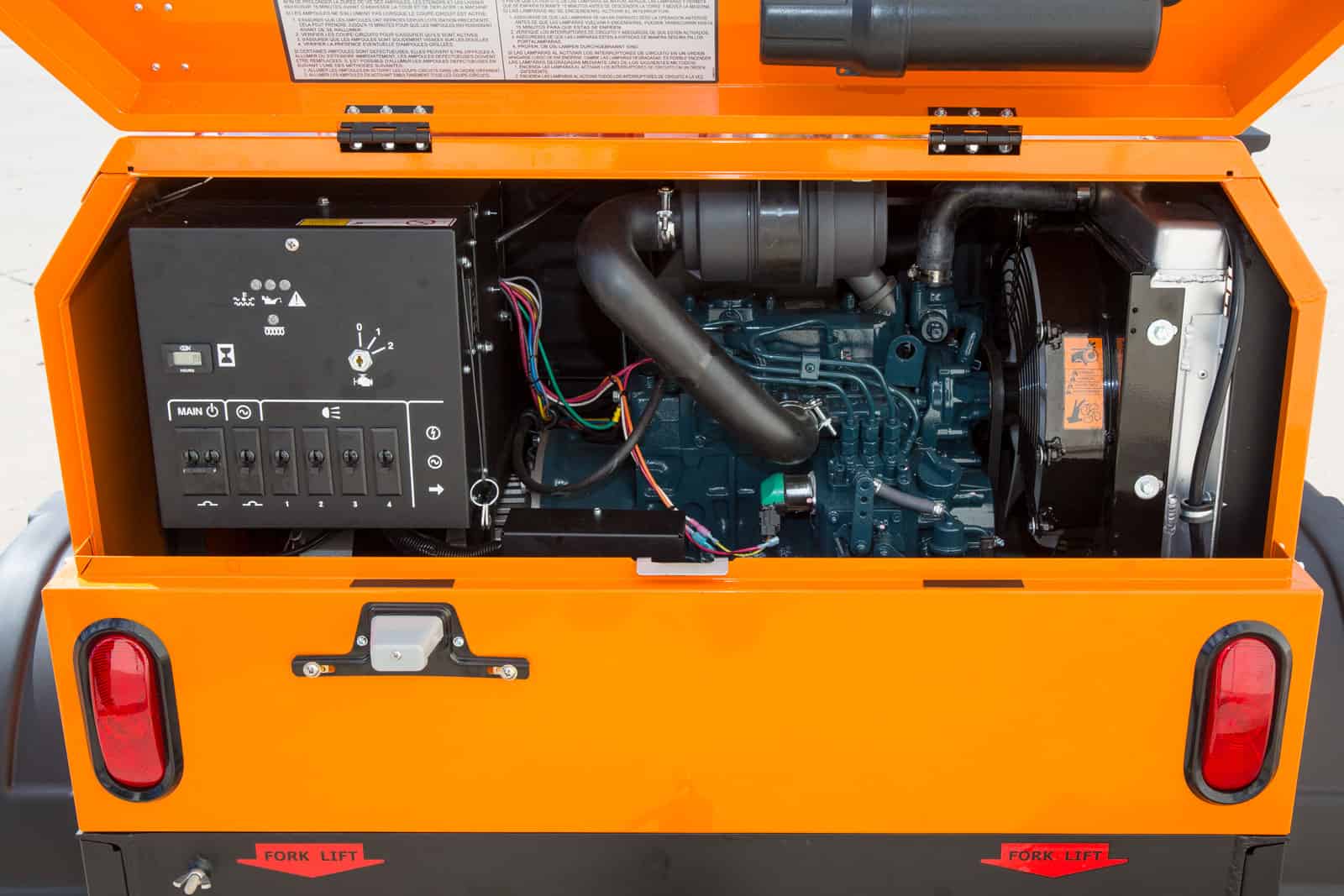

  • All-steel, weather-resistant equipment cabinet protects controls, engine and other components from the elements
  • Hinged door panel with latch provides access to controls, engine and electronics
  • Lockable door latch protects components from unauthorized access
  • Control panel includes circuit breakers for lights and convenience outlet
  • Control panel features engine hour meter and LED status indicators
  • Convenience outlet with dedicated circuit breaker powers auxiliary equipment
  • Main power circuit breaker provides added protection and instant-off to prevent engine damage
  • Optional auto-start/stop system provides dusk-to-dawn or programmable schedule operation

Power System

  • Rugged industrial diesel engine paired with a premium four-pole generator
  • Large fuel tank extends run time between refueling
  • Fuel tank is the largest available on a compact light tower
  • Glow-plug preheat system improves cold-weather starting
  • Optional cold-weather package ensures starting in severe cold
  • Automatic engine-shutdown system protects engine from damage due to low oil pressure and high coolant temperature


  • Removable top panel and door, and fold-down rear panel, provide unimpeded access to engine, generator and electrical components
  • All-welded structural steel frame ensures durability and long life
  • Durable powder-coat finish resists the elements
  • Sealed maintenance-free start battery
  • Standard trailer tires
  • Bolt-on fenders can be replaced if damaged

Model #WLTT

Different models and options available
